Main Machine Interface (MMI) by visual C++
  Author: Nuttaphong (www.try-plc.com)

1.Objective
  Because now the machine working for Electro plating side of them
is so big and location stay in the chemical area this is the bad for people go inside that area if like that we will make the system

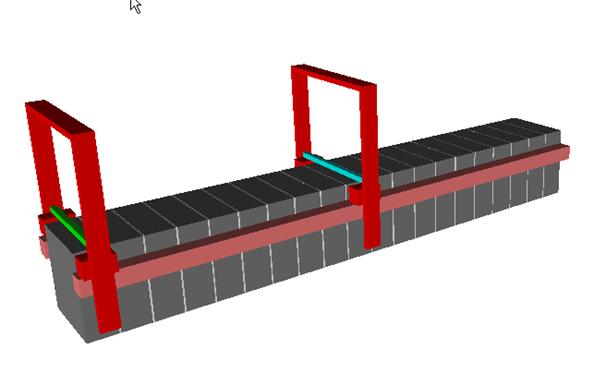

Simmulation machine status in 3D Mode This is software can we do the machine is working by use monitor computer for control the
machine

2. System Configuration


                                     Plating Machine




                               PLCOMRON CJ1G CPU44H

                                            RS232


                                   COMPUTER DISPLAY

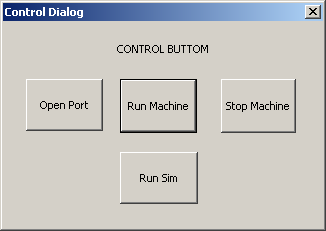

                  Operator control machine by control button
